How does an 8 channel relay work?
How does an 8 channel relay work?
A Relay is an electrically operated switch. Many relays use an electromagnet to mechanically operate the switch and provide electrical isolation between two circuits. – This 8 channel 5V relay has both optical and magnetic isolation, providing a lot of protection to the inputs from electrical faults on the outputs.
What is JD-VCC in relay?
JD-Vcc is the pin to connect to the [external] relay (JD) power supply, while Vcc is the pin to connect to the Arduino or Raspberry Pi power rail/supply.

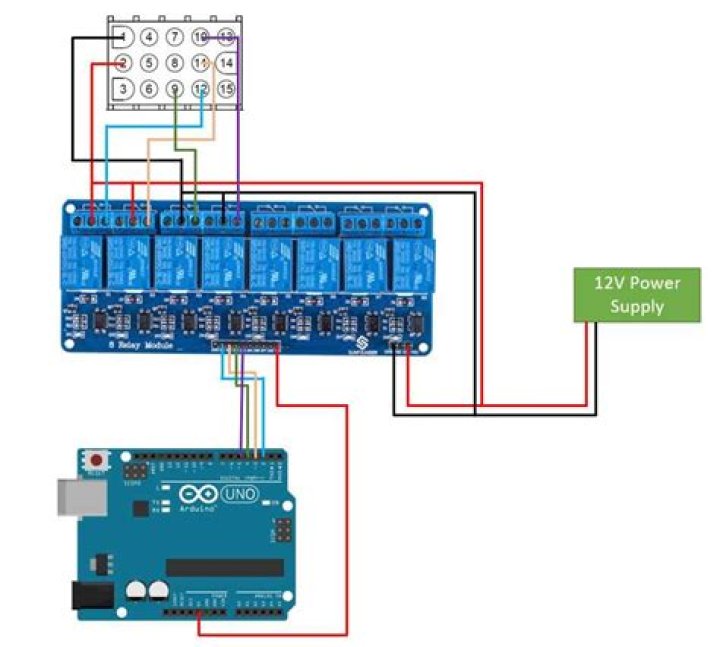

How do I connect 8 relay modules to Arduino?
- Remove blue jumper.
- Connect JD-VCC and GND from the Relay Module to a Separate 5VDC Supply (1Amp or greater)
- Connect VCC from the Relay Module to 5V on your Arduino.
- Connect required control signals as shown.
- Note: DO NOT connect GND from the Relay Module to your Arduino.
What are relay modules?
The relay module is an electrically operated switch that can be turned on or off deciding to let current flow through or not. They are designed to be controlled with low voltages like 3.3V like the ESP32, ESP8266, etc, or 5V like your Arduino.
What is 5V 8 channel relay?
It is an 8 Channel Isolated 5V 10A Relay Module, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc. It is also able to control various appliances and other types of equipment with large current.
What is 5V relay?
A 5v relay is an automatic switch that is commonly used in an automatic control circuit and to control a high-current using a low-current signal. The input voltage of the relay signal ranges from 0 to 5V.
What is a channel relay module?
Relay is an electromechanical device that uses an electric current to open or close the contacts of a switch.
What is a 4 channel relay?
The 4 Channel Relay Module is a convenient board which can be used to control high voltage, high current load such as motor, solenoid valves, lamps and AC load. It is designed to interface with microcontroller such as Arduino, PIC and etc. It also comes with a LED to indicate the status of relay.
